$3 – $20/Square Meter
500 Square Meter (Min. Order)

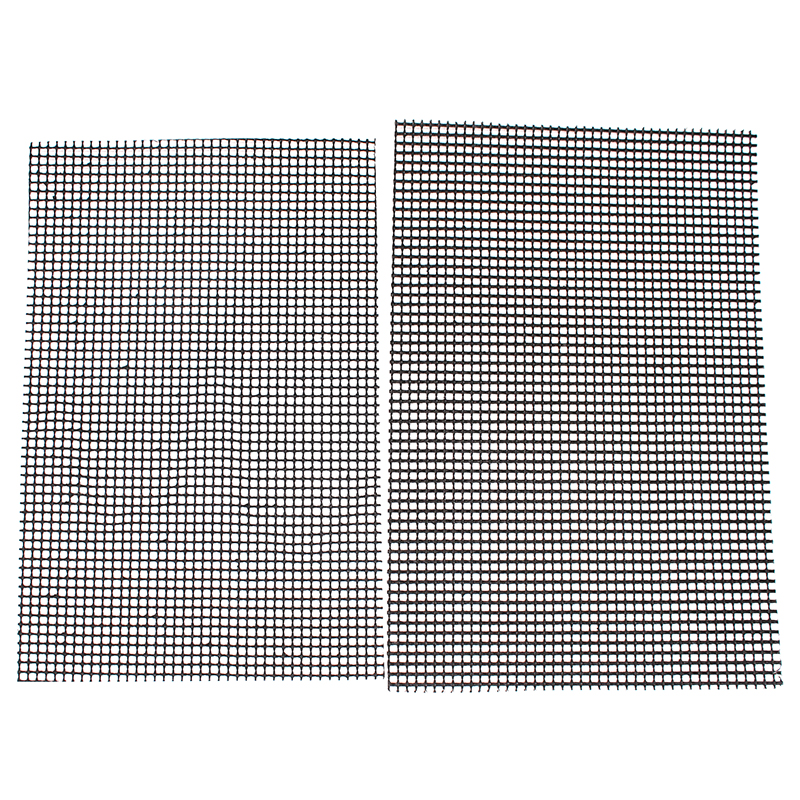

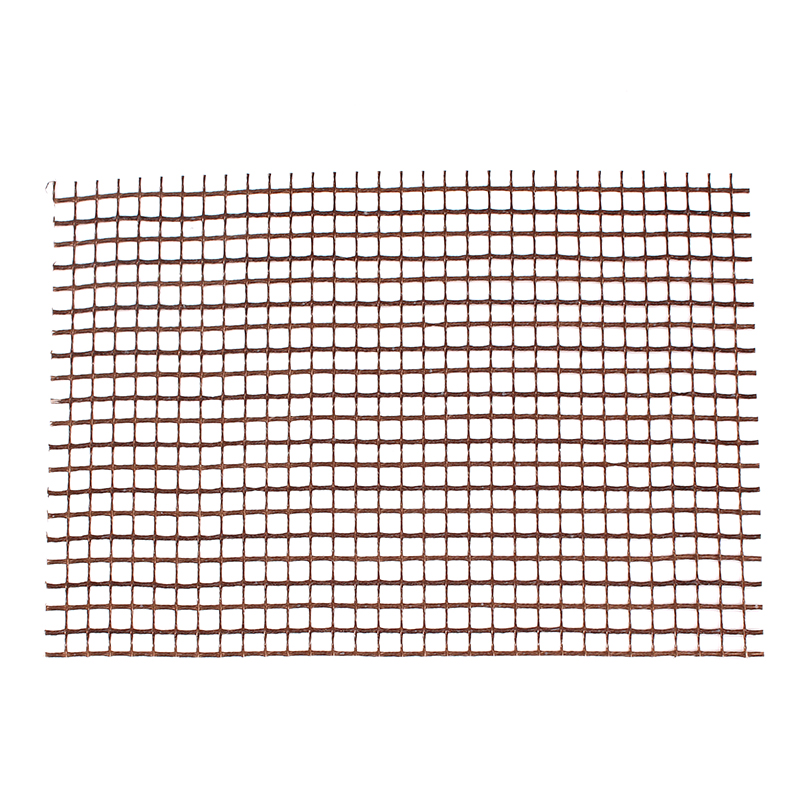

The mesh belt is one kind of high performance and multi purpose composite material, which is high quality glass fiber coated with the PTFE emulsion.
Lead Time:
| Quantity(Killograms) | 1 – 1000 | > 1000 |
| Est. Time (days) | 15 | To be negotiated |
| Item | Color | fabric weight
(g/m²)±3% |
Total weight
(g/m²)±5% |
Tensile Strength
(N/5cm)±5% |
mesh size(mm) | yarn counts | ||
| warp | weft | |||||||
| 6001 | beige | 367 | 440 | 1800 | 1650 | 1*1 | single weft single warp | |
| 6001B | black | 367 | 440 | 1650 | 1330 | 1*1 | single weft single warp | |
| 6003 | black | 343 | 480 | 1350 | 1700 | 4*4 | single weft double warp | |
| 6004 | beige | 343 | 475 | 1350 | 1700 | 4*4 | single weft double warp | |
| 6007K | yellow,double weft made of Aramid material | 417 | 570 | 3200 | 2300 | 4*4 | double weft double warp | |
| 6008 | brown | 414 | 570 | 1800 | 3000 | 4*4 | double weft double warp | |
| 6012 | black | 414 | 570 | 1800 | 3000 | 4*4 | double weft double warp | |
| 6010K | yellow,made of Aramid material | 247 | 410 | 3300 | 2050 | 4*4 | single weft double warp | |
| 6013 | beige | 306 | 430 | 1400 | 1000 | 10*10 | double weft double warp | |
| 6014 | beige | 307 | 440 | 1500 | 1100 | single weft single warp | ||
| 6015 | beige | 416 | 520 | 2000 | 1450 | 2*2.5 | single weft double warp | |
| 6016 | brown, used for joint | 417 | 615 | 3000 | 2000 | double weft double warp | ||
| 6018 | beige | 490 | 735 | 2000 | 4000 | 4*4 | double weft double warp | |
| 6019 | beige | 465 | 690 | 1800 | 3500 | 4*4 | double weft double warp | |
| 6032 | creamy white | 420 | 710 | 2500 | 3000 | 4*4 | double weft triple warp |
|
$3.00-$20.00/Square Meter
500Killogram(Min.Order)
