Excellent Performance PEEK Rods

<span>$0.3 – $20/Kilogram</span>
<span>10 Kilogram (Min. Order)</span>

Extrusion PEEK Rod



Lead Time:

Quantity(Pieces) 1 – 10 > 10
Est. Time (days) 15 To be negotiated

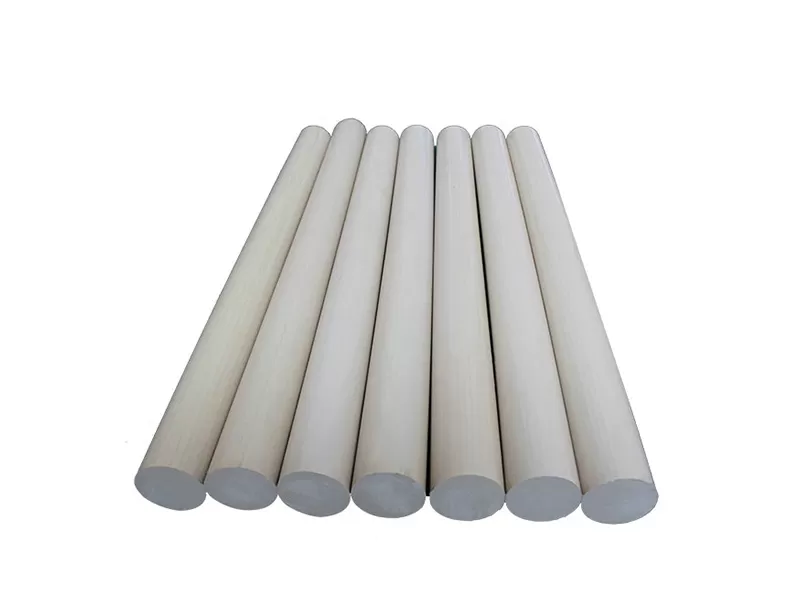

The PEEK rod manufactured with continous extrusion process has better and more stable properties.It is widely used for making components in small quantity or big size which can’t be manufactured through mold injection.Our rod varies from diameter 1mm to 250mm, the length is usually 1000mm or 2000mm, we can also make the length according to the need of the customer. We have in stock over 100 dimension molds for the rod extrusion.

ARKPEEK-1000: 100% PEEK

Produced from virgin polyetheretherketone resin and offers the highest toughness and impact resistance of all types.

ARKPEEK-CF30: 30% Carbon Fiber + 70% PEEK

Carbon fibre reinforcement lends the material a high level of rigidity and creep strength, high mechanical strength and heat conductivity values.

ARKPEEK-GF30: 30% Glass Fiber + 70% PEEK

Glass filled PEEK exhibits increased mechanical strength and high rigidity. improved creep strength and dimensional stability are achieved by this glass filled PEEK. These properties make this material suitable for use in parts which are exposed to high static loads over long periods in high temperature conditions.

ARKPEEK-MOD: 10% Carbon Fiber + 10% PTFE +10%  Graphite

high performance engineering plastic with product characteristics including excellent sliding and abrasion & wear resistance, high mechanical strength and high dimensional stability. The long term service temperature range of PEEK Rod is from -30°C to 250°C and has a short term maximum service temperature of 310°C.
