Excellent Performance Fireproof Aluminum Foil Coated Glass Fiber Fabric

$1.00-$5.00/Square Meter

500Square Meter(Min.Order)

The aluminum foil composite glass cloth is made of unique advanced composite technology. The composite aluminum foil has smooth surface, high reflectivity, high longitudinal and transverse tensile strength, air tightness, and waterproof and sealing performance.

Lead Time:

Quantity(Square Meter)	1 – 1000	> 1000
Est. Time (days)	15	To be negotiated

Aluminum foil thickness:7/14/18/25/36/50 micron

Coating: Aluminum foil/metalize film/F.R aluminized Fiberglass cloth

Type: Plain weave/twill weave Fiberglass cloth

Weight:95g/sm, 110g/sm, 200g/sm, 430g/sm, FW600, HT2025, HT3784, M24, M30, or as your requirement

Width: 1m, 1.2m, 1.5m

Length: 50m, 100m or as your requirement

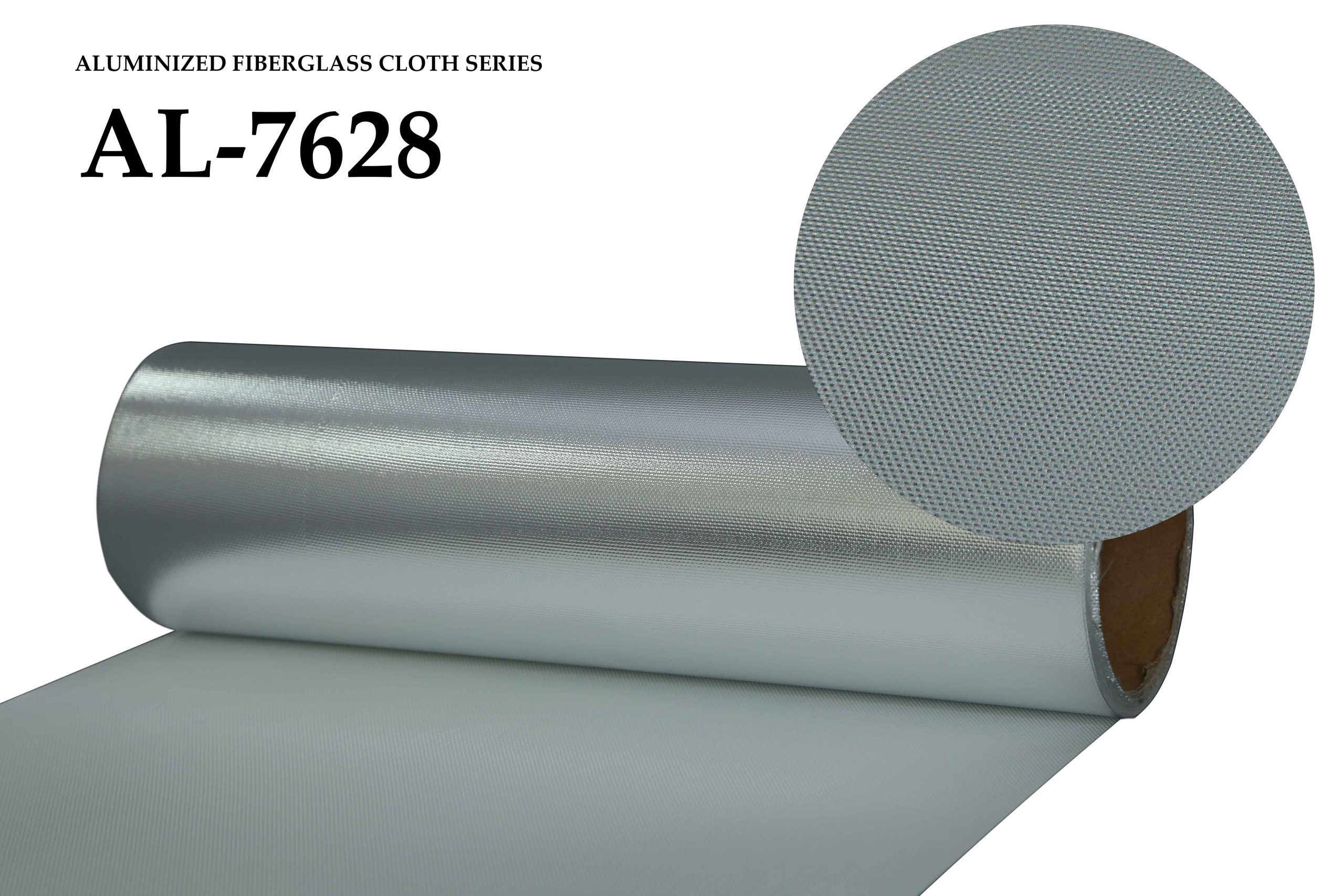

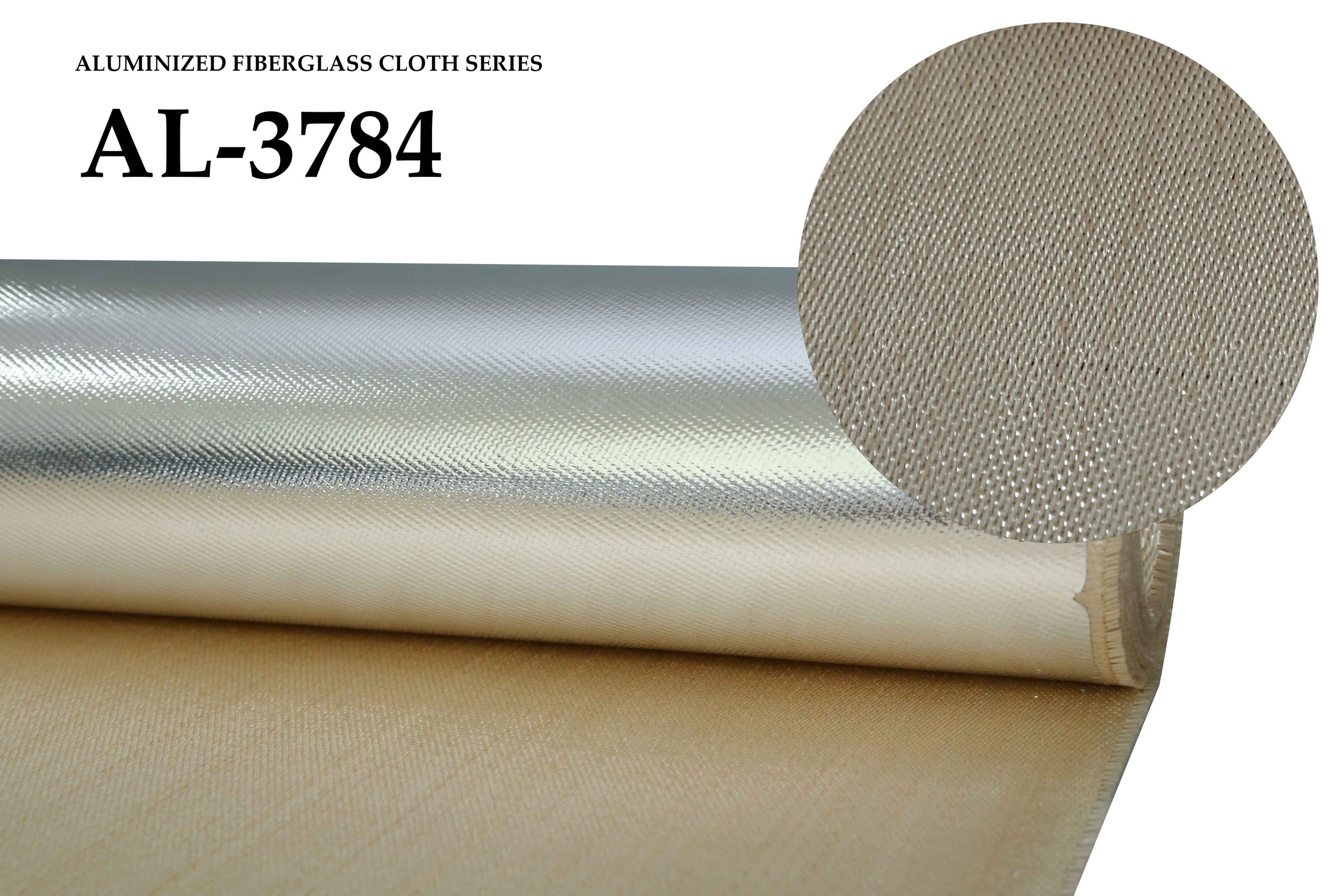

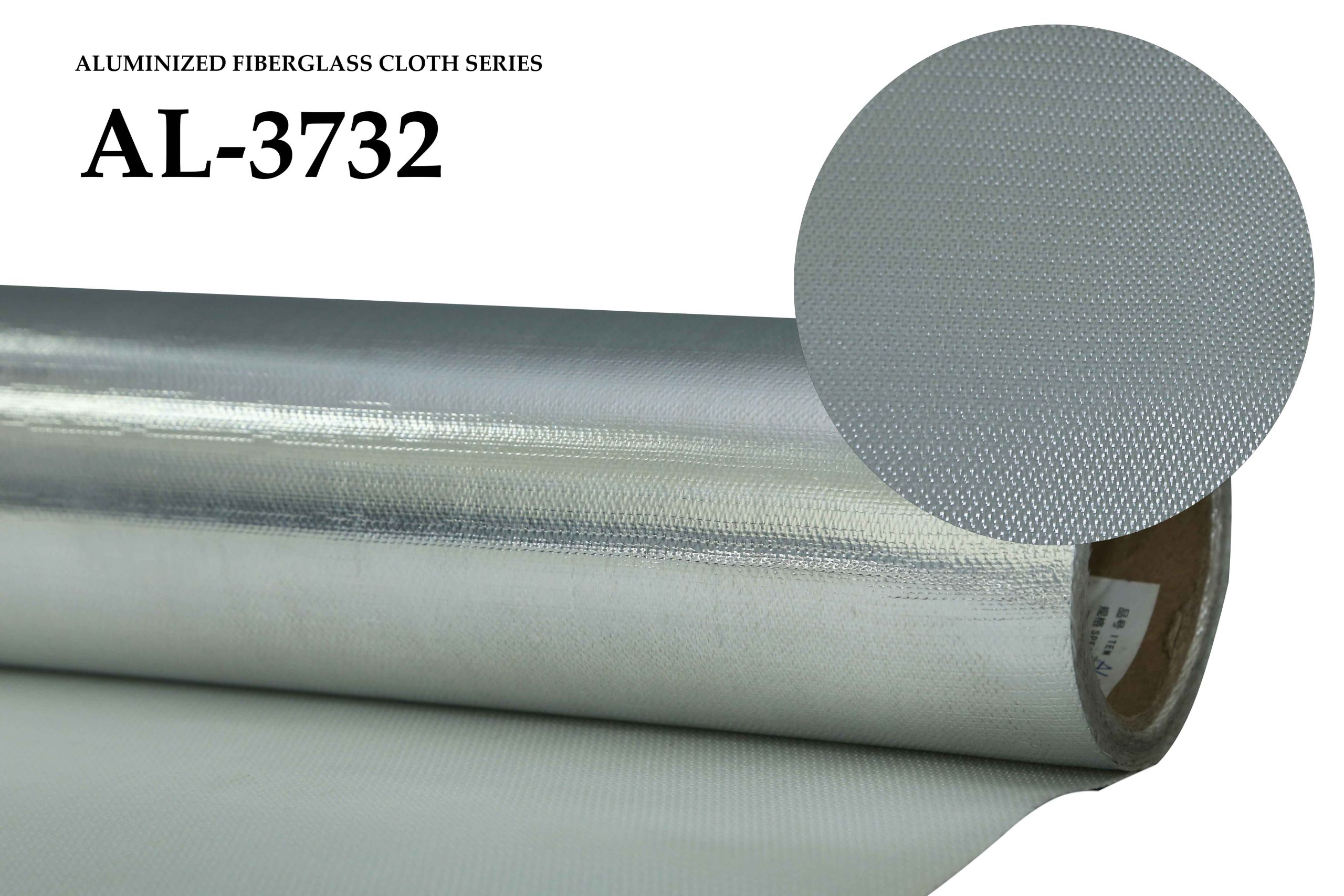

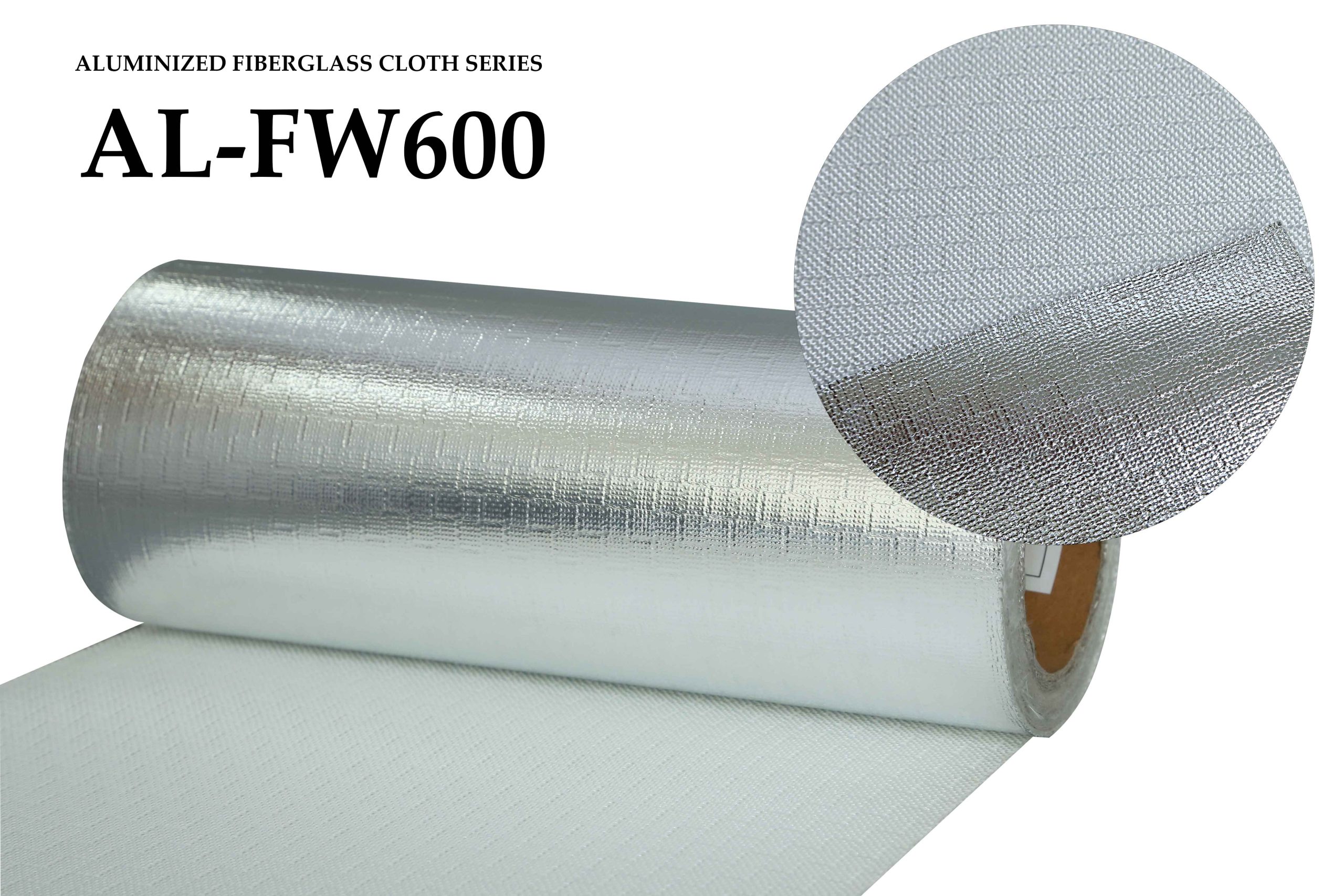

	AL-7628	AL-3732	AL-FW600	AL-HT2025	AL-3784	AL-84215
Weave	Plain	3X1 Twill	Even grain check	Plain	8 HS Satin	Plain
Warp(per/cm)	17.3	18	15	8	18	8
Weft(per/cm)	12.5	13	15	5.7	13	6
Weight(g/㎡)	200	430	600	610	880	300
Thickness(mm)	0.2	0.43	0.55	0.75	0.9	0.38
Coating	Aluminum foil/Metalized film
Coating Thickness（micron）	7/18/25
Width(m)	1/1.2/1.5
Service Temperature	fiberglass:550℃/while mucilage:300℃
